Doralox 92W - CERAMIC BALL MILL LINING BRICKS AND GRINDING MEDIA

Product Description

Duralox is a registered brand name of a specially developed proprietary composite by Jyoti Ceramic from which ball mill lining bricks, wear resistant lining tiles, grinding media and other components are manufactured.

The true value of ball mill lining is determined by its length of trouble free service in relation to the mill's production output, irrespective of mill's type, size and shape. The criteria for selection of lining and grinding material must take into consideration not only the required output and expected service life, but also construction of ball mill, it's drive and motor power before switching over to materials of high density such as Duralox.

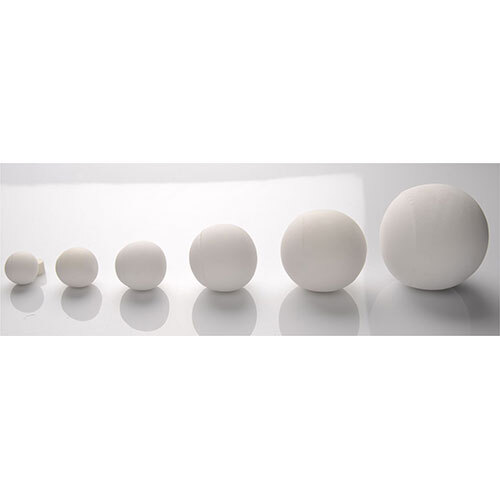

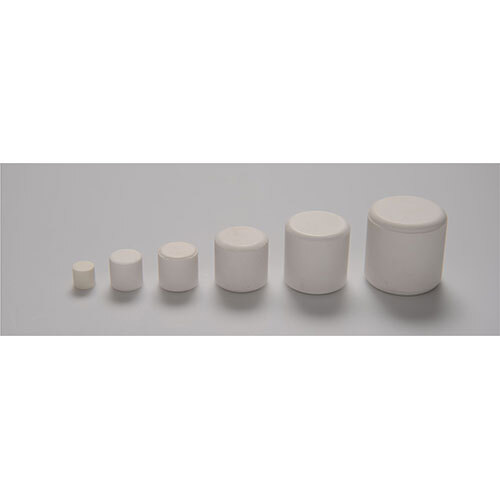

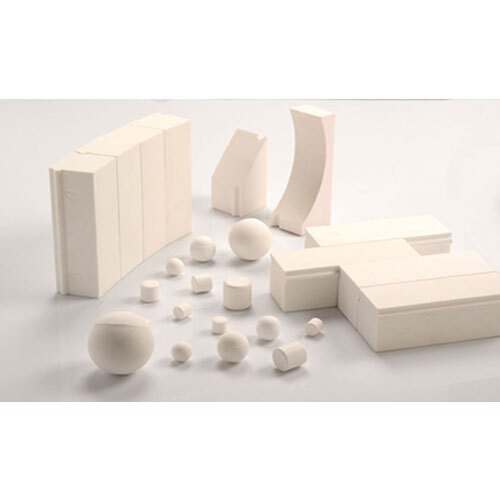

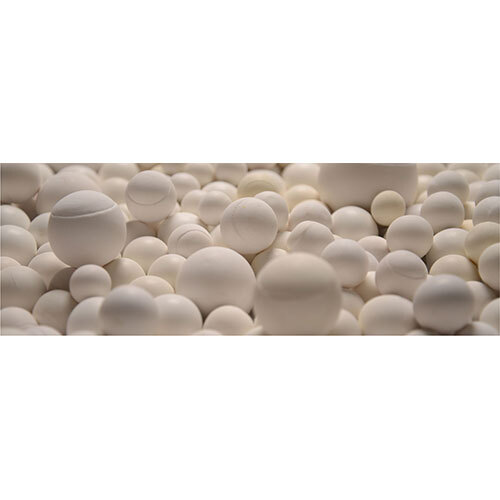

Duralox 92W mill lining bricks and grinding media have been developed by Jyoti Ceramic after many years of R & D with the intention of enhancing the former's performance. Duralox 92W lining bricks and Duralox 92W grinding media complement each other's performance and best results are obtained when both are used together.

Duralox ceramic mill lining bricks protect the steel ball mill shell and provide high purity grinding. Following features and benefits are worth considering while using Duralox Ball Mill linings for milling substances of hardness below 9.0 Moh's scale :

• Chemically inert and non - reactive to chemicals except Hydrofluaric acid.
• Wear rate of lining is negligible and more constant as compared to traditional ceramic lining materials. With tongue and groove design it produces an interlocking lining pattern, which holds the bricks inseparably
• Dimensional stability : Duralox ceramic mill lining bricks are uniform and stable in dimensions. With controlled dimensions and sharp edges, requirement of adhesive/cement for fixing and filling of narrow joints is minimum, which prevent bricks from chipping and spalling of their edges
• Easy to install : installation of Duralox lining in a ball mill can be carried out easily and speedily by any skilled or semiskilled mason under supervision of civil / mechanical engineer
• Duralox mill linings have excellent service life under normal working conditions, Duralox mill linings last about 12-15 times longer than steel, rubber etc. and 25 to 30 times longer than stone and other conventional ceramic lining materials.
• Substantial increase in mill volume due to lesser thickness as compared to traditional stone lining. A strong thin Duralox ceramic lining brick increases the working volume in a mill than thick natural stone lining blocks. A 1800mm dia. x 1800mm L Ball Mill a 50 mm thick Duralox brick lining will increase mill working volume by 30% as compared to the 125mm thick conventional natural stone lining blocks.
• Hard and tough, resists high impact, high abrasion and corrosion wear.
